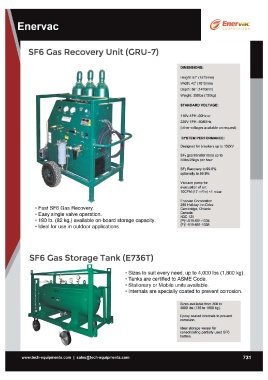

Gas Recovery Unit (GRU-7) DIMENSIONS:

• Fast SF6 Gas Recovery. Height: 62" (1575mm)
• Easy single valve operation. Width : 40" (1015mm)
• 180 lb. (82 kg.) available on-board storage capacity. Depth: 58" (1470mm)
• Ideal for use in outdoor applications. Weight: 350lbs (150kg)

STANDARD VOLTAGE:

110V-1PH -60Hz or
220V-1 PH -50/60Hz
(other voltages available on request)

SYSTEM PERFORMANCE:

Designed for breakers up to 132kV

SF6 gas transfer rates up to
551bs/25kgs per hour

SF6 Recovery to 99.6%
optionally to 99.9%

Vacuum pump for
evacuation of air:
10CFM (17 m3/hr) <1 mbar

Enervac Corporation
280 Holiday Inn Drive
Cambridge, Ontario
Canada
N3C 1Z4
(P)1-519-651-1034
(F)1-519-651-1038

SF6 Gas Storage Tank (E736T)

• Sizes to suit every need, up to 4,000 Ibs (1,800 kg).
• Tanks are certified to ASME Code.
• Stationary or Mobile units available.
• Internals are specially coated to prevent corrosion.

Sizes available from 300 to
4000 Ibs (135 to 1800 kg).

Epoxy coated internals to prevent
corrosion .

Ideal storage vessel for
consolidating partially used SF6
bottles.

www.tech-equipments.comlsales@tech-equipments.com 731
