Page 738 - techequipmentscatalogue2016

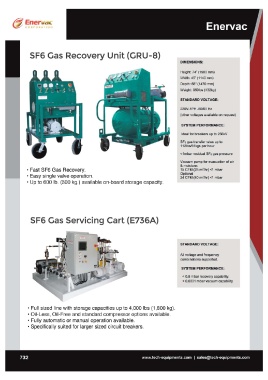

6 Cas Recovery Unit (CRU-8) DIMENSIONS:

• Fast SF6 Gas Recovery. Height: 74" (1900 mm)
• Easy single valve operation. Width: 45" (1140 mm)
• Up to 600 lb. (300 kg.) available on-board storage capacity. Depth : 58" (1470 mm)
Weight: 950lbs (432kg)

STANDARD VOLTAGE:

220V-1 PH -50/60 Hz
(other voltages available on request)

SYSTEM PERFORMANCE:

Ideal for breakers up to 256kV

SFs gas transfer rates up to
1121bs/51 kgs per hour

<1 mbar residual SFs gas pressure

Vacuum pump for evacuation of air
& moisture:
15 CFM (25 m3/hr) <1 mbar
Optional
24 CFM (40 m3/hr) <1 mbar

SF6 Cas Servicing Cart (E736A)

STANDARD VOLTAGE:

All voltage and frequency
combinations supported.

SYSTEM PERFORMANCE:
< 0.5 mbar recovery capability.
< 0.0001 mbar vacuum capability

• Full sized line with storage capacities up to 4,000 Ibs (1,800 kg).
• Oil-Less, Oil-Free and standard compressor options available.
• Fully automatic or manual operation available.
• Specifically suited for larger sized circuit breakers.

732 www.tech-equipments.comlsales@tech-equipments.com
