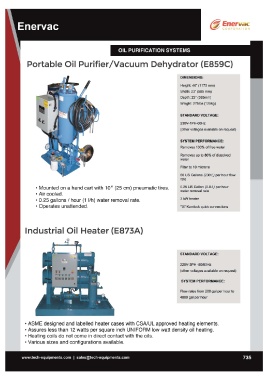

table Oil Purifier/Vacuum Dehydrator (E859C)

DIMENSIONS:

Height: 46" (1170 mm)
Width: 23" (585 mm)
Depth: 23" (585mm)
Weight: 2751bs (125kg)

STANDARD VOLTAGE:

230V-1 PH-60Hz
(other voltages available on request)

• Mounted on a hand cart with 10" (25 cm) pneumatic tires. SYSTEM PERFORMANCE:
• Air cooled. Removes 100% of free water
• 0.25 gallons I hour (1 I/h) water removal rate.
• Operates unattended. Removes up to 80% of dissolved
water

Filter to 10 microns

60 US Gallons (230 L) per hour flow
rate

0.25 US Gallon (0.9 L) per hour
water removal rate

3 kW heater

"Y:z" Kamlock quick connections

Industrial Oil Heater (E873A)

STANDARD VOLTAGE:

220V-3PH -50/60Hz
(other voltages available on request)

SYSTEM PERFORMANCE:

Flow rates from 200 gal per hour to
4800 gal per hour

• ASME designed and labelled heater cases with CSA/UL approved heating elements. 735
• Assures less than 12 watts per square inch UNIFORM low watt density oil heating.
• Heating coils do not come in direct contact with the oils.
• Various sizes and configurations available.
