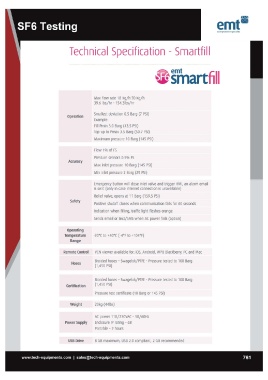

Technical Specification - Smartfill

~ smartfill

Max flow rate 18 Kg/h-70 Kg/h
39.6 Ibs/hr - 154.3Ibs/hr

Operation Smallest deviation 0.5 Barg (7 PSI)
Example:
Fill Pmin 3.0 Barg (43.5 PSI)
Top-up to Pmax 3.5 Barg (50.7 PSI)

Maximum pressure 10 Barg (145 PSI)

Accuracy Flow 1% of FS
Pressure sensors 0.5% FS
Max inlet pressure 10 Barg (145 PSI)
Min inlet pressure 2 Barg (29 PSI)

Safety Emergency button will close inlet valve and trigger HMI, an alarm email
is sent (only in case internet connection is unavailable)

Relief valve, opens at 11 Barg (159.5 PSI)

Positive shu toff closes when communication fails for 60 seconds
Indication when filling, traffic light flashes orange

Sends email or textjSMS when AC power fails (option)

Operating
Temperature

Range

Remote Control VCN viewer available for: iOS, AndrOid, WP8 Blackberry, PC and Mac

Hoses Braided hoses - Swagelok/PTFE - Pressure tested to 100 Barg
(1,450 PSI)

Certification Braided hoses - Swagelok/PTFE - Pressure tested to 100 Barg
Weight (1,450 PSI)
Pressure test certificate (10 Barg or 145 PSI)

20kg (44Ibs)

Power Supply AC power 110/230VAC - SO/60Hz
Enclosure IP rating - 68
Portable - 2 hours

USB Drive 8 GB maximum, USB 2.0 compliant, 2 GB recommended
