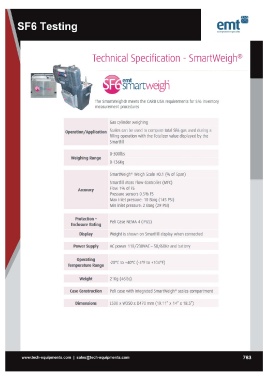

Technical Specification - SmartWeigh®

The SmartWeigh® meets the CARB USA requirements for SF6 inventory
measurement procedures

Gas cylinder weighing

Operation/Application Scales can be used to compare total SF6 gas used during a
filling opera tion wi th the Totalizer value displayed by the
Smartfill

weighing Range 0-3001bs
0-136Kg

Accuracy SmartWeigh'" weigh Scale sO.1 (% of Span)

Smartfill Mass Flow Controller (MFC)
Flow 1% of FS
Pressure sensors 0.5% FS
Max inlet pressure: 10 Barg (14S PSI)
Min inlet pressure: 2 Barg (29 PSI)

Protection - Peli Case NEMA 4 (IP6S)
Enclosure Rating weight is shown on Smartfill display when connected

Display

Power Supply AC power 11 0/230VAC - SO/60HZ and battery

Operating
Temperature Range

Weight 21Kg (46Ibs)

Case Construction Peli case wi th integrated SmartWeigh'" scales compartment

Dimensions LSOO x W3S0 x 0470 mm (19. 11" x 14" x 18.5")
