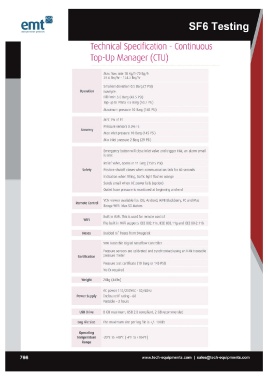

sset protection specialists Technical Specification - Continuous
Top-Up Manager (CTU)
766
Operation Max flow rate 18 Kg/h-70 Kg/h
Accuracy 39.6 Ibs/hr - 154.3 Ibs/hr
Smallest deviation 0.5 Barg (7 PSI)
Example:
Fill Pmin 3.0 Barg (43.5 PSI)
Top-up to Pmax 3.5 Barg (50.7 PSI)
Maximum pressure 10 Barg (145 PSI)
MFC 1% of FS
Pressure sensors 0.5% FS
Max inlet pressure 10 Barg (14S PSI)
Min inlet pressure 2 Barg (29 PSI)
Safety Emergency button wi ll close in let valve and trigger HMI, an alarm emai l
is sent
Relief valve, opens at 11 Barg (159.5 PSI)
Positive shutoff closes when communication fails for 60 seconds
Indication when filling, traffic light flashes orange
Sends email when AC power fails (option)
Outlet hose pressure is monitored at beginning and end
VCN viewer available for: iOS, Android, WP8 Blackberry, PC and Mac
Remote Control
Range WiFi: Max 50 Metres
WiFi Built in WiFi. This is used for remote control
Hoses The built in WiFi supports IEEE 802.11n, IEEE 802 .11g and IEEE 80-2.11b
Certification
weight Braided 1f2" hoses from Swagelok
NMI Traceable Digital Massflow Controller
Pressure sensors are calibrated and synchronised using an NMI traceable
pressure meter
Pressure test certificate (10 Barg or 145 PSI)
No Ex required
20kg (44Ibs)
Power Supply AC power 110/230VAC - SO/60HZ
Enclosure IP rating - 68
Portable - 2 hours
USB Drive 8 GB maximum, USB 2.0 compliant, 2 GB recommended
log File Size The maximum size per log file is +!- 100kb
Operating -20°C to +40°C (-4°F to +104°F)
Temperature
Range
