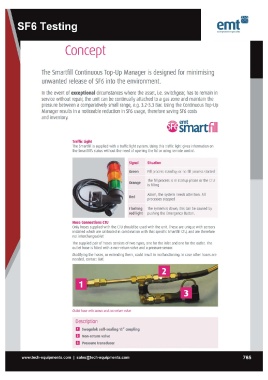

P. 771
asset protection specialists
concept
The Smartfill Continuous Top-Up Manager is designed for minimising
unwanted release of SF6 into the environment.
In the event of exceptional circumstances where the asset, i.e. switchgear, has to remain in
service without repair, the unit can be continually attached to a gas zone and maintain the
pressure between acomparatively small range, e.g. 3.2-3.3 Bar. Using the Continuous Top-Up
Manager results in a noticeable reduction in SF6 usage, therefore saving SF6 costs
and inventory. ~ ~smartfill
Traffic Light
The Smartfill is supplied wi th a traffic light system. using this traffic light gives information on
the Smartfill's status without the need of opening the lid or using remote control.
Signal Situation
Green
Orange Fill process standby; or no fill process started
The fill process is in startup phase or the CTU
is filling
Red Alarm, the system needs attention. All
processes stopped
Flashing The system is down, this can be caused by
red light pushing the Emergency Button.
Hose Connections CTU
Only hoses supplied with the CTU should be used with the unit. These are unique with sensors
installed which are calibra ted in combination wi th that specific Smartfill CTU, and are therefore
not interchangeable!
The supplied pair of hoses consists of two types, one for the inlet and one for the outlet. The
ou tlet hose is fitted with a non-return valve and a pressure sensor.
Modifying the hoses, or extending them, could resul t in malfunctioning. In case other hoses are
needed, contact EMT.
Outlet hose with sensor ond non-return volve 765
Description
D Swagelok self-sealing W' coupling
D Non-return valve
D Pressure transducer
