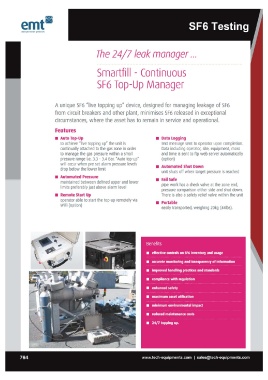

The 24/7 leak manager ...
Smartfill - Continuous
SF6 Top-Up Manager
A un ique SF6 "live topping up" device, designed for manag ing leakage of SF6
from circuit breakers and other plant, minimises SF6 released in exceptional
circumstances, where the asset has to remain in service and operational.
Features • Data Logging
text message sent to operator upon completion.
• Auto Top-Up Data including operator, site, equipment, mass
to achieve "live topping up" the uni t is and time is sent to ftp web server automatically
continually attached to the gas zone in order (option)
to manage the gas pressure within a small
pressure range i.e. 3.3 - 3.4 Bar. "Auto top-up" • Automated Shut Down
will occur when pre set alarm pressure levels unit shuts off when target pressure is reached
drop below the lower limit
• Fail Safe
• Automated Pressure pipe work has a check valve at the zone end,
maintained between defined upper and lower pressure comparison either side and shut down.
limits preferably just above alarm level There is also a safety relief valve within the unit
• Remote Start Up • Portable
operator able to start the top-up remotely via easily transported, weighing 20kg (44Ibs).
WiFi (option)
764 www.tech-equipments.comlsales@tech-equipments.com
