asset protection specialists

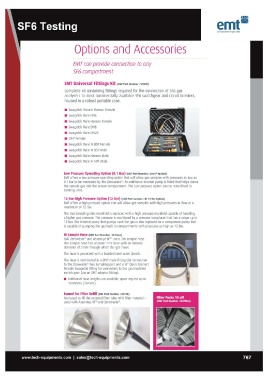

Options and Accessories
EMT can provide connection to any
SF6 comportment
EMT Universal Fittings Kit (EMf Part Number: SF6F1T)
Complete kit containing fittings required for the connection of SF6 gas
analysers to most commercially available SF6 switchgear and circuit breakers,
housed in a robust portable case.
• Swagelok Female Hanson Female
• Swagelok Male ON6
• Swage10k Male Hanson Female
• Swagelok Male ON8
• Swagelok Male ON20
• ON? Female
• Swagelok Male % BSP Female
• Swagelok Male JA BSP Male
• Swagelok Male Hanson Male
• Swagelok Male Y4 NPT Male.
Low Pressure Operating Option (0.1 Bar) (EMf Part Number : Low P Option)
EMT offers a low pressure operating option that will allow gas samples with pressures as low as
0.1 bar to be measured by the ZerowasteCll• An additional internal pump is fitted tha t helps draws
the sample gas into the sensor compartment. The Low pressure option can be retro-fitted to
existing units.
12 Bar High Pressure Option (12 Bar) (EMf Part number: IR 12 Bar Option)
EMT offers a high pressure option that will allow gas samples with high pressures to flow at a
maximum of 12 Bar.
The Gas Sampling inlet manifold is replaced with a high pressure manifold capable of handling
a higher gas pressure. The pressure is monitored by a pressure transducer that has a range up to
12 bar. The internal pump that pumps back the gas is also replaced for a compressor pump that
is capable of pumping the gas back to compartments with pressures as high as 12 Bar.
IR Sample Hose (EMf Part Number: IR Hose)
EMT ZerowasteCll and Asserolyz-IR1M use a 2m sample hose.
The sample hose has an inner PTFE tube wi th an internal
diameter of 2mm through which the gas flows.
The hose is protected wi th a braided steel outer shea th.
The hose is terminated in a ON? male fitting (for connection
to the ZerowasteCll Gas Sampling port and a 'h" Quick Connect
Female Swagelok fitting for connection to the gas insulated
switch gear (via an EMT adaptor fitting).
• Additional hose lengths are available upon request up to
10 Metres (30 Feet).
Funnel for Filter Refill (EMf Part Number: IR FNL)
Tool used to fill the external filter tube with filter material -
used with Asserolyz-IR1Mand ZerowasteCll•
www.tech-equipments.comlsales@tech-equipments.com 767
