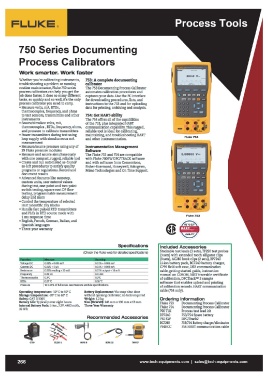

P. 272
UKE ®
750 Series Documenting
Process Calibrators
Work smarter. Work faster
Whether you're calibrating instruments, 753: A complete documenting
calibrator
troubleshooting a problem or running
routine maintenance, Fluke 750 series The 753 Documenting Process Calibrator
process calibrators can help you get the automates calibration procedures and
job done faster. It does so many different captures your data. Use the PC interface
tasks, so quickly and so well, it's the only for downloading procedures, lists, and
process calibrator you need to carry. instructions to the 753 and for uploading
data for printing, archiving and analysis.
• Measure volts, rnA, RTDs,
thermocouples, frequency, and ohms 754: Get HART-ability
to test sensors, transmitters and other
instruments The 754 offers all of the capabilities
of the 753, plus integrated HART
• Source/simulate volts, rnA, communication capability. This rugged,
thermocouples , RTDs, frequency, ohms, reliable tool is ideal for calibrating,
maintaining, and troubleshooting HART
and pressure to calibrate transmitters and other instrumentation.
• Power transmitters during test using
Instrumentation Management
loop supply with simultaneous rnA Software
measurement
• Measure/source pressure using any of The Fluke 753 and 754 are compatible
29 Fluke pressure modules with Fluke 700SW DPC!TRACK software
and with software from Cornerstone,
• Measure and source simultaneously Fisher-Rosemont, Honeywell, Yokogawa,
with one compact, rugged, reliable tool Prime Technologies and On TIme Support.
• Create and run automated as-found! Fluke 753
as-left procedures to satisfy quality
programs or regulations. Record and
document results
• Advanced features like autostep,
custom units, user entered values
during test, one-point and two-point
switch testing, square root DP flow
testing, programmable measurement
delay and more
• Control the temperature of selected
Hart Scientific Dry Blocks
• Handle fast pulsed RTD transmitters
and PLCs in RID source mode with
1 ms response time
• English, French, German, Italian, and
Spanish languages
• Three-year warranty
Specifications Included Accessories
(Check the Fluke w eb for detailed specifications) Stackable test leads (3 sets), TP220 test probes
(3 sets) with extended tooth alligator clips
YOlta2e DC 0.02% + 0.005 mY 0.01% + 0.005 mY (3 sets), AC280 hook clips (2 sets), BP7240
CUrrent DC
Resistance 0.01% + 5 \lA 0.01% + 0.003 rnA Li-ion battery pack, BC7240 battery charger,
Frea uencv C799 field soft case, USB communication
Th ermocouples 0.05% readin 2 + 50 m!l 0.01% outPut + 10 m!l cable, getting started guide, instruction
manual on CDROM, NIST traceable certificate
RIDs 0.05 Hz 0.01 Hz of calibration, DPCTrack™ 2 sample
Pressure software that enables upload and printing
0.3"C 0.2"C
of calibration records. HART communication
0.07"C 0.06"C cable (754 only).
To 0.05% of full scale. See Pressure Module specifications.
Operating temperature: -10· C to 50· C Battery Replacement: Via snap-shut door Ordering Information
Storage temperature: -20· C to 60· C
without opening calibrator; no tools required Fluke 753 Documenting Process Calibrator
Safety: CAT Il 300V
Battery Life: Typically over eight hours Weight: 1.2 kg Fluke 754 Documenting Process Calibrator
Internal Battery Pack: Ii-ion, 7.2V. 4400 mAh.
30Wh Size (HxWxD): 245 mm x 136 m m x 63 m m
Three Year Warranty
700 TLK Process test lead kit
Recommended Accessories BP7240 753/754 Spare battery
750 SW DPC/1Tack2
BC7240 753/754 Battery charger/eliminator
754HCC 754 HART communication cable
C799 TL22O-1 SOPK-8 SOPK-2S 700P27
266 www.tech-equipments.comlsales@tech-equipments.com
