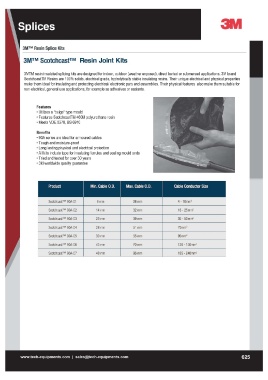

MResin Splice Kits
3MTM Scotchcast™ Resin Joint Kits
3MTM resin insulated splicing kits are designed for indoor, outdoor (weather exposed), direct buried or submersed applications. 3M brand
ScotchcastTM Resins are 100% solids, electrical grade, hydrolytically stable insulating resins. Their unique electrical and physical properties
make them ideal for insulating and protecting electrical/ electronic pars and assemblies. Their physical features also make them suitable for
non-electrical , general use applications, for example as adhesives or sealants.
Features
• Utilizes a "bulge" type mould
• Features ScotchcastTM 460M polyurethane resin
• Meets VDE 0278, BS 6910
Benefits
• 90A series are ideal for armoured cables
• Tough and moisture-proof
• Long lasting physical and electrical protection
• All kits include tape for insulating ferrules and sealing mould ends
• Tried and tested for over 30 years
• 3M worldwide quality guarantee
Product Min. Cable 0.0. Max. Cable 0.0. Cable Conductor Size
Scotchcast™ 90A-01 8mm 28mm 4 -10mm2
ScotchcasFM 90A-02 14mm 32mm 16 - 25mm2
ScotchcasFM 90A-03 23 mm 39mm 35 - 5Omm2
Scotchcast™ 90A-04 28 mm 51 mm 70mm2
Scotchcast™ 90A-05 30 mm 55mm 95mm2
Scotchcast™ 90A-06 45 mm 70mm 120 - 150mm2
Scotchcast™ 90A-07 48 mm 86mm 185 - 240mm2
