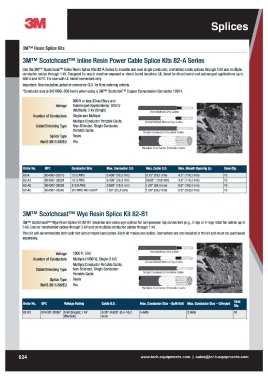

P. 630
M Resin Splice Kits
3MTM Scotchcast™ Inline Resin Power Cable Splice Kits 82-A Series
Use the 3MTM Scotchcast™ Inline Resin Splice Kits 82-ASeries to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple
conductor cables through 1 kV. Designed for use in weather-exposed or direct-burial locations. UL listed for direct burial and submerged applications up to
600 Vand 90°C. For use with UL listed connectors only.
Important: Use insulation jacket or connector 0.0. for final ordering criteria.
*Conductor size is 3/0 AWG-500 kcmil when using a 3MTM Scotchlok™ Copper Compression Connector 10014.
Voltage 600 Vor less (Direct Bury and Nonshielded Dry Cable
Submerged Applications); 1000 V Nonshielded Wet or Dry Cable
Number of Conductors (Multiple); 5 kV (Single) Single Conductor Portable Cable
Gable/Shielding Type Single and Multiple Multiple Conductor Portable Cable
Multiple Conductor Portable Gable,
Splice Type Non-Shielded, Single Conductor
RoHS 2011/65/EU Portable Gable
Resin
Yes
Order No. UPC Conductor Size Max. Connector 0.0. Max. Cable 0.0. Max. Sheath Opening (L) Case Qty.
82-A 054007-25016 10-2AWG 0.406" (10,3 mm) 0.75" (19,1 mm) 4.5" (114,3 mm) 10
82-Al 054007-25024 18-2AWG 0.406" (10,3 mm) 0.625" (15,9 mm) 4.5" (114,3 mm) 10
82-A2 054007-25032 2-3/0AWG 0.625" (15,9 mm) 1.00" (25,4 mm) 6.0" (152,4 mm) 10
82-A3 054007-25040 3/0 AWG-400 kcmil· 1.00" (25,4 mm) 1.56" (39,7 mm) 9.0" (228,6 mm) 10
3MTM Scotchcast™ Wye Resin Splice Kit 82-B1
3MTM ScotchcastTMWye Resin Splice Kit 82-B1 insulates and seals wye splices for compression tap connectors (e.g., C-tap or H-tap) rated for cables up to
5 kV. Use on nonshielded cables through 5 kV and on multiple conductor cables through 1 kV.
This kit will accommodate both split bolt and crimped conductors. Each kit makes one splice. Connectors are not included in the kit and must be purchased
separately.
Voltage 1000V; 5 kV =
Number of Conductors Multiple (1000 V), Single (5 kV)
Nonshielded Dry Cable
Gable/Shielding Type Multiple Conductor Portable Gable,
Non-Shielded, Single Conductor L
Splice Type Portable Gable
RoHS 2011/65/EU Resin Nonshielded Wet or Dry Cable
Yes Single Conductor Portable Cable
Multiple Conductor Portable Cable
624 www.tech-equipments.comlsales@tech-equipments.com
