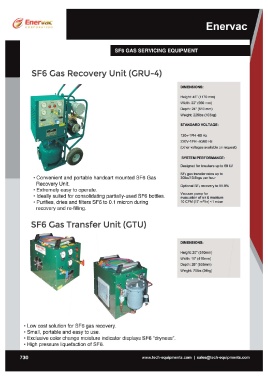

SF6 Gas Recovery Unit (GRU-4)

..· 1·II ·1· :·~;·rI·. DIMENSIONS:
. .. ;" rI I ...:.~r~~f'.~..j
-. -. ~ Height: 46" (1170 mm)
Width: 22" (560 mm)
\"- 1ft; Depth: 24" (610 mm)
Weight: 2251bs (103kg)
• Convenient and portable handcart mounted SF6 Gas
Recovery Unit. STANDARD VOLTAGE:

• Extremely easy to operate. 120v-1PH -60 Hz
• Ideally suited for consolidating partially-used SF6 bottles. 220V-1 PH -50/60 Hz
• Purifies, dries and filters SF6 to 0.1 micron during (other voltages available on request)

recovery and re-filling. SYSTEM PERFORMANCE:
Designed for breakers up to 69 kV
SF6 Gas Transfer Unit (GTU) SFs gas transfer rates up to
301bs/13.6kgs per hour
Optional SFs recovery to 99.9%
Vacuum pump for
evacuation of air & moisture
10 CFM (17 m3/hr) <1 mbar

DIMENSIONS:

Height: 20" (510mm)
Width: 16" (410mm)
Depth: 25" (635mm)
Weight: 751bs (34kg)

• Low cost solution for SF6 gas recovery.
• Small, portable and easy to use.
• Exclusive color change moisture indicator displays SF6 "dryness".
• High pressure liquefaction of SF6.
