Jl..AMPROBE"

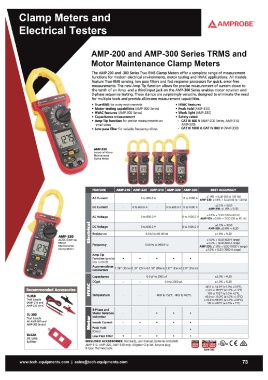

AMP-200 and AMP-300 Series TRMS and
Motor Maintenance Clamp Meters
The AMP-200 and -300 Series True-RMS Clamp Meters offer a complete range of measurement
functions for modern electrical environments, motor testing and HVAC applications. All models
feature True-RMS sensing, low pass filters and fast response processors for quick, error-free
measurements. The new Amp-Tip function allows for precise measurement of current down to
the tenth of an Amp, and a third input jack on the AMP-300 Series enables motor rotation and
3-phase sequence testing. These clamps are surprisingly versatile, designed to eliminate the need
for multiple tools and provide all-in-one measurement capabil ities.
• True-RMS for noisy environments • HVAC features
• Motor testing capabilities (AMP-300 Series) • Peak hold (AMP-330)
• HVAC features (AM P-300 Series)
• Capacitance measurement • Work light (AMP-330)
• Amp-Tip function for precise measu rements on
• Safety rated:
small wires - CAT 111600 V (AMP-200 Series, AM P-31O,
• Low pass filter for variable frequency drives AMP-320)
- CAT III 1000 V. CAT IV 600 V (AMP-330)
AMP-330
Industrial Motor
M aintenance
Clamp Meter
ACiDC Electrical oto 600.0 V ±2.0% + SLSD
Motor oto 600.0 V AMP-330: ± 1.8% + sLSD
Ma intenance ± 1.0% + sLSD (50 to 60 Hz)
Clamp Meter 5.00 Hz to 999.9 Hz AMP-330: ±0.8% + sLSD (50 to 60 Hz)
± 1.0% + sLSD (600 v range)
± 1.0% + sLSD (600 A range)
AMP-330: ± 1.0% + sLSD (1000 V range)
±1.0% + sLSD (1000 A range)
Recommended Accessories -40.0 to 752°F, -40.0 to 400°C -40.0 to 14 .0°F (± 1.0% +3.0°F),
> 14.0 to 99.9°F (± 1.0% + lYF)
TL3SB INCLUDED ACCESSORIES: Test leads, user manual, batteries (insta lled)
Test Leads AMP-310, AMP-320, AMP-330 only: A lligator Clip Set, Banana p lug 100 to 7s2"F (± 1.0% +2°F),
K-type Thermocouple -40.0 to -1O.O°C (± 1.0% + lYC)
(AMP-21 0 and >-10.0 to 99.9°C (±1.0% +0.8°C),
AMP-220 on ly)
100 to 400°C (± 1.0% + 1°C)
TL-300
Test Leads c@usCE &
A ll AMP-200 and
A MP-300 Series) AMP-330
ELS2A 73
AC Li ne
Splitter
