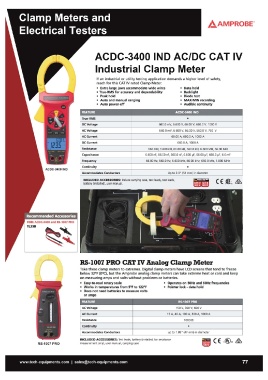

Jl..AMPROBE"
ACDC-3400 IND AC/DC CAT IV
Industrial Clamp Meter
If an industrial or utility testing application demands a higher level of safety,
reach for this CAT IV rated Clamp Meter.
• Extra large jaws accommodate wide wires • Data hold
• True-RMS for accuracy and dependability • Backlight
• Peak hold • Diode test
• Auto and manual ranging • MAXIMIN recording
• Auto power-off • Audible continuity
FEATURE ACDC-3400 IND
True-RMS
DC Voltage 660 .0 mY, 6.600 V, 66.00 V, 660.0 V, 1000 V
ACVoltage 660 .0 mY, 6.600 V, 66.00 V, 660.0 V, 750 V
AC Current
DC Current 66.00 A, 660 .0 A. 1000 A
Resistance
Capacitance 660.0 A, 1000A
Frequency 660.0 0 , 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO
Continuity 6.600 nF, 66.00 nF, 660.0 nF, 6.600 ~F, 66.00 ~ F, 660.0 ~F , 6.6 mF
Accommodates Conductors 66 .00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660 .0 kHz, 1.000 M Hz
Up t o 2.0 " (51 mm) in diameter
INCLUDED ACCESSORIES: Deluxe carrying case, test leads, test leads,
battery (installed), user manual.
RS-I007 PRO CAT IV Analog Clamp Meter
Take these clamp meters to extremes. Digital clamp meters have LCD screens that tend to f reeze
below 32°F (O°C), but the Amprobe ana log clamp meters can take extreme heat or cold and keep
on measuring amps and volts w ithout problems or batte ries.
• Easy-to-read rotary scale • Operates on 50Hz and 60Hz frequencies
• Works in temperatures from 5°F to 122°F • Pointer lock - data hold
• Does not need batteries to measure volts
or amps
FEATURE RS-1007 PRO
ACVoltage 150 V, 300 V, 600 V
AC Current 15 A, 40 A, 100 A, 300 A, 1000 A
Resistance
Continuity .1000 0
Accommodates Conductors
up to 1.88 " (47 mm) in diameter
RS-1007 PRO INCLUDED ACCESSORIES: Test leads, battery (installed, for resistance
measurement on ly), user man ual, carrying case
