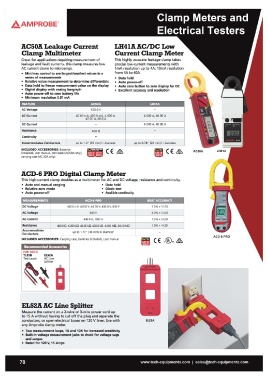

P. 84
AMPROBE$
ACSOA Leakage Current LH41AACIDC Low
Clamp Multimeter Current Clamp Meter
Great for applications requiring measurement of This highly accurate leakage clamp takes
leakage and fault currents, this clamp measures low precise low-current measurements with
AC current down to microamps. 1mA resol ution up to 4A; 10mA resolution
from 4A to 40A
• MinImax control to see largest/smallest values in a
series of measurements • Data hold
• Auto power-off
• Relative value measurement to determine differentials • Auto zero button to zero display for DC
• Data hold to freeze measurement value on the display • Excellent accuracy and resolution
• Digital display with analog bargraph
• Auto power-off to save battery life
• Minimum resolution 0.01 mA
FEATURE ACSOA LH41A
ACVoltage 400 .0 V
AC Current 4.000 A. 40.00 A
40.00 mA, 400.0 mA, 4.000 A.
DC Current 40 .00 A. 60.0 A 4.000 A, 40.00 A
Resistance 4000
Continuity
Accommodates Conductors up to 1.2" (30 mm) in diameter up to 0.78" (20 mm) in diameter
INCLUDED ACCESSORIES: Batteries CE & CE&
(installed), user manual, test leads (AC50A on ly),
carrying case (AC50A on ly)
ACD-6 PRO Digital Clamp Meter
This high-current clamp doubles as a multimeter for AC and DC voltage, resistance and continuity.
• Auto and manual ranging • Data hold
• Relative zero mode • Diode test
• Auto power-off • Audible continuity
MEASUREMENTS ACD-6 PRO BeST ACCURACY
1.0% + 3 LSD
DC Voltage 400.0 mY, 4.000 V, 40.00 V, 400.0 V, 600 V 2.0% + 5 LSD
1.5% + 5 LSD
ACVoltage 600V 1.0% + 4 LSD
AC Current 400.0 A, 1000 A
Resistance 400.0 0 , 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
Accommodates up to 1.77" (45 mm) in diameter
Conductors
INCLUDED ACCESSORIES: Carrying case, batteries (insta lled), user manua l
Recommended Accessories
FOR: ACD· 6
TL35B ELS2A
Test Leads AC Line
~*~' a
ELS2A AC Line Splitter ElS2A
Measure the current on a 2-wire or 3-wire power cord up www.tech-equipments.comlsales@tech-equipments.com
to 15 A without having to cut off the plug and separate the
conductors, or open electrical boxes on 120 V lines. Use with
any Amprobe clamp meter.
• Two measurement loops, 1X and 10X for increased sensitivity
• Built-in voltage measurement jacks to check for voltage sags
and surges
• Rated for 120 V, 15 Amps
78
