Jl..AMPROBE"

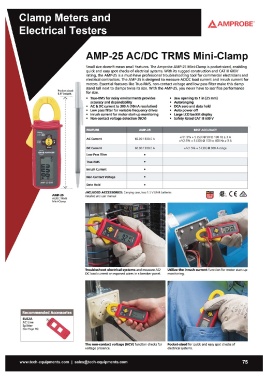

AMP-25 AC/DC TRMS Mini-Clamp
Pocket-sized Small size doesn't mean small features. The Amprobe AMP-25 Mini-Clamp is pocket-sized, enabling
5.8" height. quick and easy spot checks of electrical systems. With its rugged construction and CAT III 600V
rating, the AMP-25 is a must-have professional troubleshooting tool for commercial electricians and
'7.''''''' electrical contractors. The AMP-25 is designed to measure AClDC load current and inrush current for
motors. Essential features like True-RMS, non-contact voltage and low pass filter make this clamp
AMP-25 stand tall next to clamps twice its size. With the AMP-25, you never have to sacrifice performance
ACJDCTRMS for size.
Mini-C la m p
• True-RMS for noisy environments provides • Jaw opening to 1 in (25 mm)
accuracy and dependability • Autoranging
• DCA zero and data hold
• AC & DC current to 300 A (10mA resolution) • Auto power off
• Low pass filter for variable frequency drives • Large LCD backlit display
• Inrush current for motor start-up monitoring • Safety Rated CAT III 600 V
• Non-contact voltage detection (NCV)
FEAruRE AMP-25 BEST ACCURACY
AC Current 60 .00/300.0 A +/-(1.5% + 5 LSD)@ 50 to 100 Hz 20 3 A
+/-(2.5% + 5 LSD) @ 100 to 400 Hz 20 3 A
DC Current 60 .00/300.0 A
Low Pass Filter +/-(1.5% + 5 LSD) @ 300 A range
True-RMS ··
Inrush Current ··
Non-Contact Voltage ·
Data Hold
,NCLUDED ACCESSORIES: Carrying case, two 1.5 V LR44 batteries
installed and user manual
Troubleshoot electrical systems and measure AO utilize the inrush cunrent function for motor start-u p
DC load current on exposed wires in a breaker panel. m o n it o r i n g .
Recommended Accessories
ELS2A
AC Line
Splitter
(See Page 56)
The non-contact voltage (NCV) function checks for Pocket-sized for quick and easy spot checks of
vo ltage presence. electrica l systems.
www.tech-equipments.comlsales@tech-equipments.com 75
