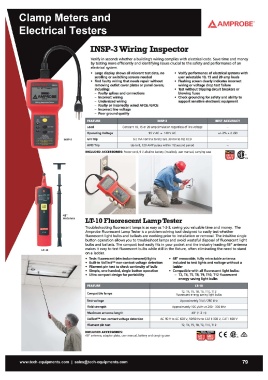

P. 85
Jl..AMPROBE"
INSP-3 Wiring Inspector
Verify in seconds whether a building's wiring complies with electrical code. Save time and money
by testing more efficiently and identifying issues crucial to the safety and performance of an
electrical system.
• Large display shows all relevant test data, no • Verify performance of electrical systems with
scrolling or switching screens needed user selectable 10, 15 and 20 amp loads
• Find faulty wiring that needs repair without • Flashing screen clearly indicates incorrect
removing outlet cover plates or panel covers, wiring or voltage drop test failure
including:
- Faulty splices and connections • Test without tripping circuit breakers or
- Incorrect wiring blowing fuses
- Undersized wiring
- Faulty or incorrectly wired AFGs/GFCls • Check grounding for safety and ability to
- Incorrect line voltage support sensitive electronic equipment
- Poor ground quality
FEATURE INSP-] BEST ACCURACY
Load Constant 10, 15 or 20 amp simu lat ion regard less of line voltage
Operating Voltage 95V AC - 140VAC +/- 2% + 2 LSD
INSP-3 GFI Trip 6.0 mA nominal to t rip GFI, 30 mA to t rip RCD
AFCITrip Up to S, 120 AMP pulses w it hin 112 second period
INCLUDED ACCESSORIES: Power cord, 9 V alkaline battery (installed), user manua l, carrying case
4S " LT-IO nUorescent Lamp Tester
Ant enna
Troubleshooting fluorescent lamps is as easy as 1-2-3, saving you valuable time and money. The
Amprobe Fluorescent Lamp Tester is a problem solving tool designed to easily test whether
fluorescent light bulbs and ballasts are working prior to installation or removal. The intu itive single
button operation allows you to troubleshoot lamps and avoid wasteful disposal of fluorescent light
bulbs and ballasts. The compact tool easily fits in your pocket and the industry leading 48" antenna
makes it easy to test fluorescent bulbs while still in the fixture, often eliminating the need to stand
on a ladder.
• Tests fluorescent (electroluminescent) lights • 48" removable, fully retractable antenna
• Built-in VolTect™ non-contact voltage detection included to test lights and voltage without a
• Filament pin test to check continuity of bulb ladder
• Simple, one-handed, single button operation
• Ultra compact design for portability • Compatible with all fluorescent light bulbs:
- T2, T4, Ts, TB, T9, T10, T12 fluorescent
energy saving light bulbs
FEATURE LT-10
T2, T4, TS, TS, T9, n o, n2
Compatible lamps f luorescent energy saving light bulbs
Test voltage Approximately 3 kV / 2S0 kHz
Field strength Approximately 100 ~V/m at 260 - 300 kHz
Maximum antenna length
VolTect™ non-contact voltage detection 48 " (1.2 m)
Filament pin test AC 90 V to AC 600 V, 50/60 Hz to CAT II 300 V, CAT I 600 V
T2, T4, T5, TS, T9, n o, T12
INCLUDED ACCESSORIES:
4S" antenna, adaptor plate, user manual, battery and carrying case
www.tech-equipments.comlsales@tech-equipments.com 79
